as requested by quickrack. heres a couple of pics of the wiring for the module and coil. any 1.6 or 2.0 non injection pinto engined sierra will have suitable bits for this conversion. also remember to use the sierra electronic ignition coil along with the module. only snag with using this system is it wont run the older type rev counters.

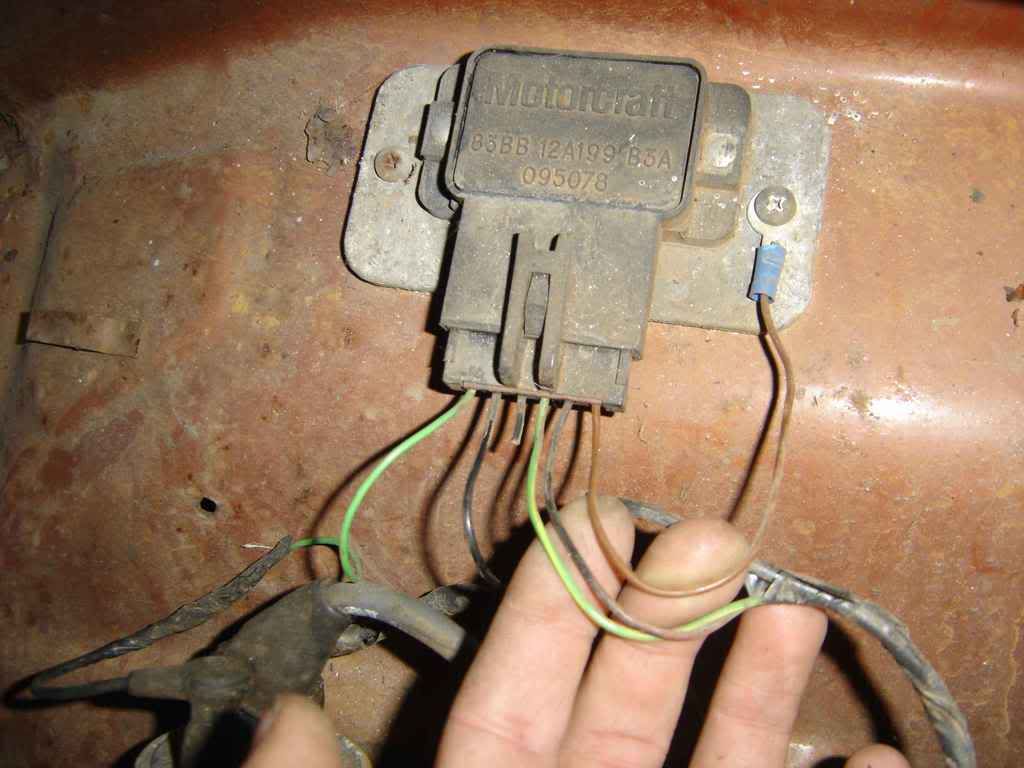

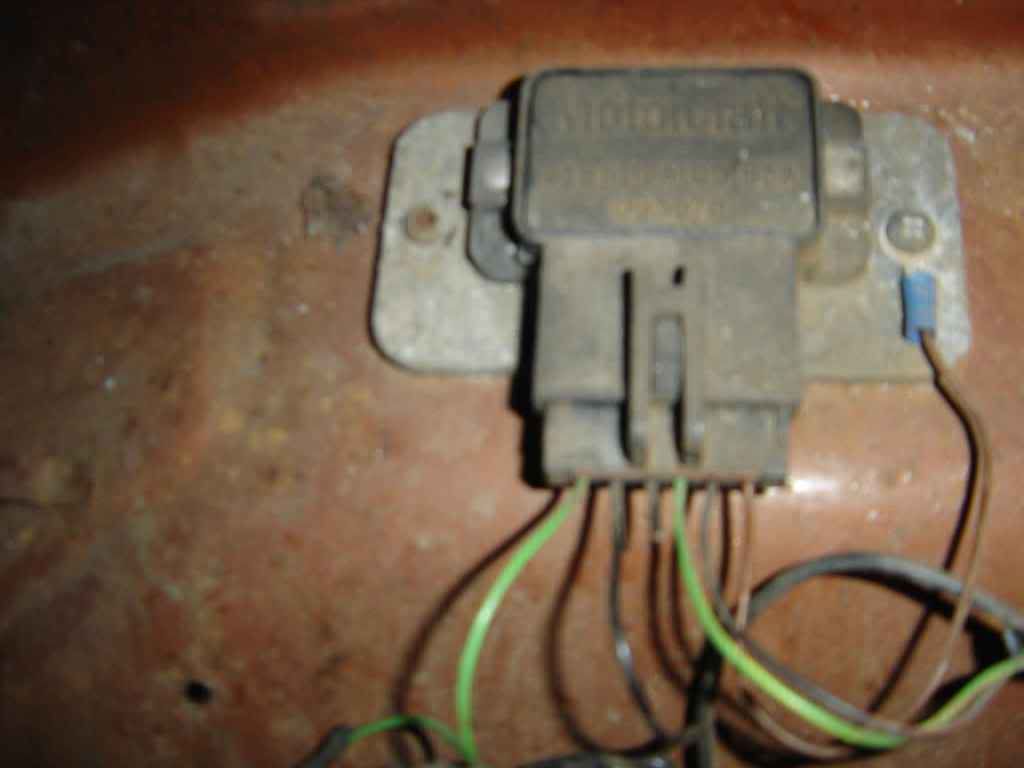

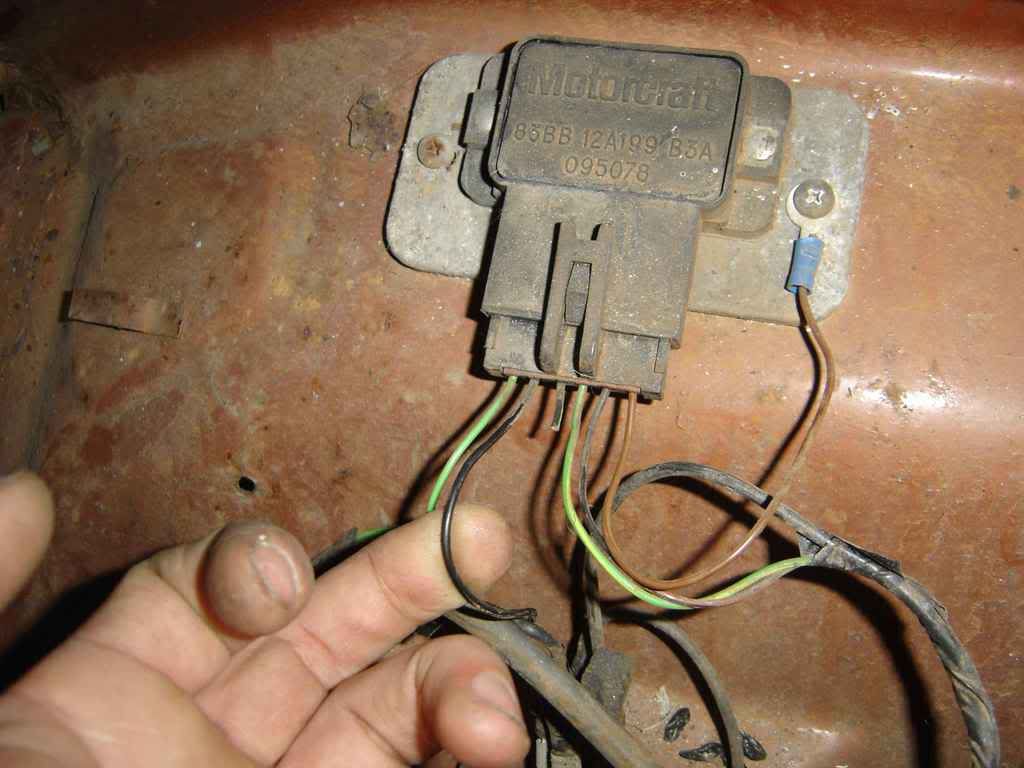

heres the module with the wires visible goin into the plug. the brown wire at the
end on the right hand side goes to earth.

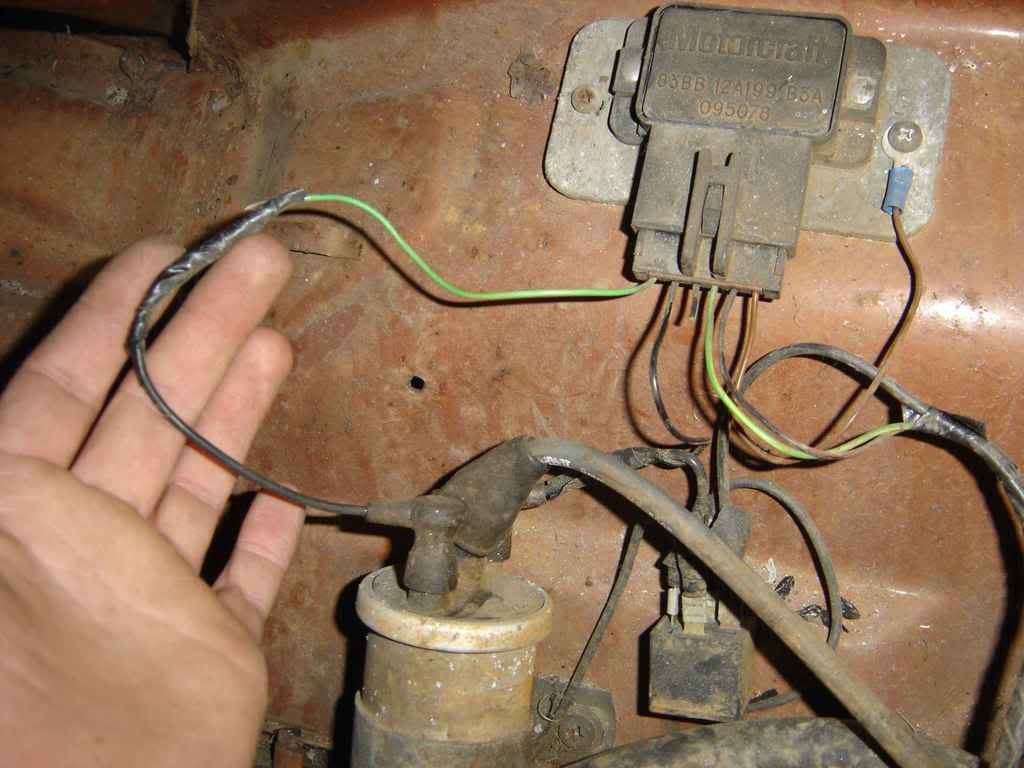

the green wire on the opposite end goes to the negative of the coil.
the black wire beside the green one is the live feed which can be joined to the wire goin to the positive side of the coil.
there are two more wires coming in from the plug in the dizzy. the one remaining wire is not needed and can be cut short.
hope this helps.
